Comprehensive and Detailed Explanation
For virtualization functions and operational reliability, the architecture must leverageCisco NSO (Network Services Orchestrator)capabilities. NSO provides:
* Transactional service modeling
* Automatic rollbackwhen any step of a transactional deployment fails
* Real-time network-state visibilityvia NSO CLI and live device synchronization
* End-to-end service lifecycle automation
Among the options:
Why B is correct
* “Virtualization service modeling” fits NSO’s core design principle: model the service, not individual devices.
* NSO’s CLI providesstate visibility, operational introspection, transaction logs, and commit details.
* NSO’s transactional engine providesautomatic rollbackupon any device or service failure.
* This option capturesfull lifecycle automation,real-time state visibility, andreliability, exactly as required.
Why others are incorrect
* A: CLI NED alone does not provide real-time state visibility or automated rollback; manual rollback contradicts requirements.
* C: Only focuses on service modeling + CLI, but doesnotinclude rollback or lifecycle automation.
* D: Templates alone do not ensure rollback or real-time operational state.

Comprehensive and Detailed Explanation From Cisco SP Core Optimization Knowledge Cisco IOS supportsBGP Multipathfor installing multiple equal-cost BGP routes (both iBGP and eBGP) into the routing table. The correct global BGP command syntax to set the number of allowable parallel BGP paths is:
maximum-paths <number>
For BGP specifically, the form is:
maximum-paths bgp <number>
This enables the router to install up to the specified number of equal-cost BGP routes (iBGP and eBGP) into the RIB and then potentially into the FIB.
Setting:
maximum-paths bgp 6
allowssixparallel ECMP paths learned via BGP-this matches the requirement in the question.
Why the other options are incorrect
* B. multipath eibgp 6Not a valid Cisco IOS command.
* C. maximum paths bgp routers 6Invalid syntax.
* D. maximum-paths eibgp 6The correct keyword isbgp, noteibgp.Cisco does not use “eibgp” in this context; IOS supports BGP multipath across iBGP/eBGP automatically when configured under maximum-paths bgp.

Comprehensive and Detailed Explanation From Cisco Cloud Architecture Knowledge Event-driven applications require:
* Stateless, micro-sized execution units
* Automatic scaling
* Code that runsonlywhen triggered
* No server or VM lifecycle management
This model is known asFunction-as-a-Service (FaaS).
Cisco FaaSprovides:
* Serverless execution
* Event-driven triggers
* Deployment of atomic micro-functions
* Automatic scaling and resource abstraction
* Ideal environment for microservices and cloud-native workloads
Why the others are incorrect:
* A. Cisco+ Hybrid Cloud for VDI# delivers desktops, not serverless compute
* C. Cisco+ Hybrid Cloud Virtualization# VM-based infrastructure, not event-driven micro-functions
* D. Cisco Intersight# operational management tool, not a serverless execution platform

In Cisco SD-WAN,vSmart controllers must be assigned to controller groupsso that edge routers can form redundant control-plane connections. Each data center in the diagram has its own group:
* New York DC # Controller group-ID 1(vSmart1, vSmart2, vSmart3)
* Los Angeles DC # Controller group-ID 2(vSmart4, vSmart5, vSmart6)
To configure the controllers correctly:
vSmart1
It resides in theNew York DC, so it must be assigned tocontroller-group 1.
Required command:
system controller-group-id 1
This corresponds toOption D.
vSmart4
It resides in theLos Angeles DC, so it must be assigned tocontroller-group 2.
Required command:
system controller-group-id 2
This corresponds toOption C.
Why Other Options Are Incorrect
* A and B:The command max-control-connections is configured onedge routers, not vSmart controllers.
* E:Controller-group-id 4 does not exist in this design; only group 1 and group 2 are shown.

In the diagram, thePE and R2, R3, R4, R5belong toAS 100. The PE router runs BGP processAS 100, so its BGP configuration must start with:
router bgp 100
To performiBGP multipath load sharingacross three equal-cost internal BGP paths, BGP must be instructed to keep and use multiple iBGP paths in the routing table. This is done with:
router bgp 100
maximum-paths ibgp 3
* maximum-paths ibgp 3 tells BGP to install up tothreeiBGP paths to the same prefix, enabling CEF to load-share across those paths.
* router bgp 100 is required because the PE is inAS 100, not 101.
Other options:
* ip load-sharing per-destination affects CEF behavior but does not enable BGP iBGP multipath by itself and is not specific to three iBGP paths.
* ip load-sharing ibgp 3 is not a valid IOS BGP command.
* router bgp 101 would configure the wrong AS and break the iBGP relationships shown in AS-100.
Thus, the correct commands on the PE to achieve iBGP multipath load sharing over the three internal paths are maximum-paths ibgp 3androuter bgp 100, corresponding toA and E.

Comprehensive and Detailed Explanation
Cisco NFVIS logging levels (from lowest to highest):
* critical
* error
* warning
* info
* debug#highest verbosity
To capture maximum diagnostic detail, engineers must enabledebuglogging on theoperational log type, which records system activity and runtime behavior.
Thus the correct command is:
system set-log logtype operational level debug
This provides the deepest troubleshooting visibility.

In Cisco Overlay Transport Virtualization (OTV), thejoin interfaceis the Layer 3 interface that connects the edge device to thetransport network(the routed core / WAN) where multicast groups (control, data, broadcast) are reachable.

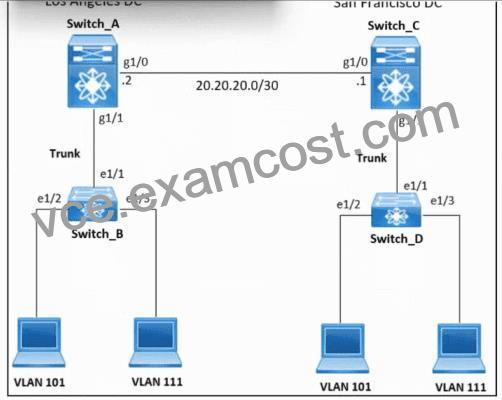

From the topology:
* Interfaceg1/0on Switch_A is connected to the routed 20.20.20.0/30 link toward Switch_C (the transport
/ WAN).
* Interfaceg1/1is a trunk toward Switch_B and carries extended VLANs (101, 111), so it belongs to the internal site-facing side, not the transport.

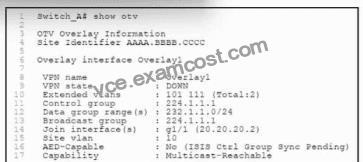

In the show otv output, the join interface is incorrectly configured asg1/1 (20.20.20.2), which is an internal trunk and not the correct routed interface to the OTV transport network. Because the join interface does not face the multicast-enabled transport, OTV cannot establish adjacency and the VPN state remains DOWN.
Correct configuration should use:
otv join-interface GigabitEthernet1/0
Options A and C about group addresses are not the issue; addresses shown (224.x for control/broadcast and
232.x for data group range) are valid multicast ranges. Option D (e1/1) is also an internal access/trunk interface and not the WAN transport interface.

In a cloud-scale or data center-scale environment,Virtual Extensible LAN (VXLAN)is used as anoverlay technologyto transportLayer 2 segments over a Layer 3 underlay network. VXLAN encapsulates Layer 2 Ethernet frames inside UDP/IP packets, allowing broadcast, unknown unicast, and multicast (BUM) traffic and tenant Layer 2 domains to be extended across a routed IP fabric.
Key points aligned with Cisco Service Provider Cloud Infrastructure design principles:
* VXLAN creates aLayer 2 overlay on top of a Layer 3 underlay.
* TheVXLAN Network Identifier (VNI)provides a much larger segmentation space than traditional VLANs, enabling multi-tenancy at cloud scale.
* Because the underlay is pure Layer 3 (IP routed fabric), VXLAN allows you tointerconnect Layer 2 segments between leaf switches or data centers over an IP/MPLS backbonewithout relying on large Layer 2 domains in the physical network.
Why the options evaluate as follows:
* Option A: extends Layer 2 segments across the underlying Layer 3 infrastructure#This is the core benefit of VXLAN in cloud-scale designs. VXLAN encapsulates Layer 2 frames intoIP/UDP headers, allowing isolated Layer 2 segments (per VNI) to be stretched across a routed IP network. This enables:
* Multi-tenant Layer 2 connectivity across a distributed cloud fabric
* Mobility of virtual machines or containers while keeping same IP/MAC addressing
* Use of an IP-based leaf-spine or service provider underlay for scalability and resiliency
* Option B: extends Layer 3 segments across the underlying Layer 2 infrastructure#This is the opposite of what VXLAN does. VXLAN is explicitlyL2-over-L3, not L3-over-L2. Extending pure Layer 3 segments over Layer 2 is not the VXLAN use case.
* Option C: reduces spanning-tree complexity across the Layer 2 infrastructure##(Partially related but not the primary or direct benefit)In modern designs, the underlay isLayer 3 routed, and VXLAN overlays provide logical Layer 2 segments. This designavoids dependence on spanning tree in the fabric, whichindirectlyreduces STP complexity. However, the fundamental, exam-relevant benefit isL2 extension over L3, so C is not the best or most accurate answer compared to A.
* Option D: eliminates the need for a Layer 3 underlay in the service provider infrastructure
#VXLAN absolutelyrequiresan IP (Layer 3) underlay for transport. VXLAN tunnels are built over a routed infrastructure (leaf-spine, MPLS/IP core, etc.). It does not remove the need for Layer 3; it depends on it.
